What is 74AHCT1G08SE-7?
74AHCT1G08SE-7 is a Logic - Gates and Inverters component from Diodes Incorporated. This product page summarizes the core sourcing details buyers need before checking price, availability, documentation, or samples.
Supply original 74AHCT1G08SE-7, Logic - Gates and Inverters, by Diodes Incorporated
IC GATE AND 1CH 2-INP SOT353
RoHS
Datasheet

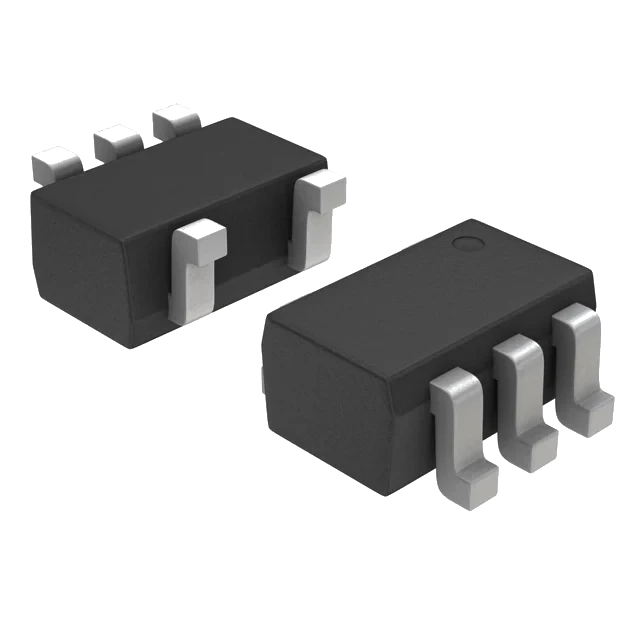

Pictures are for reference only. Please contact us for the latest pictures.
Key specifications
Serise
74AHCT
Min Quantity
1
Category
Integrated Circuits (ICs)Sub Categroy
Logic - Gates and InvertersDescription
IC GATE AND 1CH 2-INP SOT353
key Attributes
-
Technical document
Open The Official Datasheet
Review the latest datasheet for 74AHCT1G08SE-7 from Diodes Incorporated in a separate tab so engineers and buyers can check package, electrical characteristics, and application details without leaving this product page.
Why request a quote
Use the RFQ step to confirm the commercial and documentation details buyers usually need before placing an order.
Confirm stock and lead-time expectations
Check CoC or traceability support
Align inspection and fulfillment details
Trust signals
Globally recognized certifications
Visible certifications work best when they are paired with clear operational promises around traceability, handling, and inspection.
ISO 9001
Quality management processes for more consistent sourcing and handling.
AS9120B
Aerospace-focused distribution controls for traceability and reliability.
ISO 14001
Environmental management discipline across warehouse and operating workflows.
ESD Control
Electrostatic handling standards to help protect sensitive components.
Authenticity Verification
CoC Available on Request
Pre-Shipment Inspection
Responsive RFQ Support
Why buyers trust this sourcing flow
Our quality workflow is designed to reduce counterfeit risk and support confident procurement. Components are reviewed through documented handling and inspection steps so buyers can evaluate sourcing with stronger authenticity controls.
Structured product content
Review The Product The Way Buyers Actually Evaluate It
Jump between overview, specs, and related sourcing content without scanning one long uninterrupted page.
Product overview
Overview
IC GATE AND 1CH 2-INP SOT353
Full technical breakdown
Detailed Specifications
Review grouped attributes and parameters without scanning one oversized table.
Fast scan
Popular Specs Surfaced First
Product Parameter
Power Supplies
5V
Product Parameter
Number Of Inputs
2
Product Parameter
Voltage - Supply
4.5V~5.5V
Product Parameter
Schmitt Trigger Input
Yes
Product Parameter
Current - Output High, Low
8mA 8mA
Product Parameter
Propagation Delay
5.1 ns
Power Supplies
5V
Number Of Inputs
2
Voltage - Supply
4.5V~5.5V
Schmitt Trigger Input
Yes
Current - Output High, Low
8mA 8mA
Propagation Delay
5.1 ns
Turn On Delay Time
5.1 ns
Logic Level - High
2V
Logic Level - Low
0.8V
Logic Function
AND
Logic Type
AND Gate
Max Propagation Delay @ V, Max CL
7.9ns @ 5V, 50pF
Part Status
Active
REACH Status
REACH Unaffected
ECCN
EAR99
Lead Free
Lead Free
Mounting Type
Surface Mount
Packaging
Tape & Reel (TR)
Factory Lead Time
18 Weeks
Length
2.2mm
Categories
Integrated Circuits (ICs)
Width
1.35mm
Terminal Position
DUAL
Peak Reflow Temperature (Cel)
260
Terminal Form
GULL WING
Operating Temperature
-40°C~125°C
Supply Voltage
5V
Technology
CMOS
Max Junction Temperature (Tj)
150°C
Height
1.1mm
Published
2017
Manufacturer
Diodes Incorporated
Package / Case
5-TSSOP, SC-70-5, SOT-353
Number Of Functions
1
Operating Supply Voltage
5V
Contact Plating
Tin
Radiation Hardening
No
Reflow Temperature-Max (S)
40
Mount
Surface Mount
Pbfree Code
yes
Ambient Temperature Range High
125°C
Number Of Outputs
1
Number Of Pins
5
Number Of Terminations
5
Pin Count
5
Nominal Supply Current
1μA
Output Current
8mA
Quiescent Current
1μA
Subcategory
Gates
Sub-Categories
Logic - Gates and Inverters
Series
74AHCT
Max I(Ol)
0.008 A
Family
AHCT/VHCT/VT
Manufacturer'S Part No.
74AHCT1G08SE-7
Output Characteristics
TOTEM POLE
Base Part Number
74AHCT1G08
JESD-609 Code
e3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
RoHS Status
ROHS3 Compliant
REACH SVHC
No SVHC
HTSUS
8542.39.0001
ECCN Code
EAR99
Common questions
Product FAQ
Quick answers for buyers reviewing 74AHCT1G08SE-7, stock, documentation, and sourcing steps.
What package and description are listed for 74AHCT1G08SE-7?
74AHCT1G08SE-7 is listed with package reference SOT353. The current product description is IC GATE AND 1CH 2-INP SOT353, and buyers should confirm package, footprint, and electrical details against the datasheet or quotation notes before approval.
Is 74AHCT1G08SE-7 available in stock?
This page currently shows 24509 units in stock and 20389 units available for 74AHCT1G08SE-7. Because electronic component availability can change quickly, submit an RFQ to confirm live stock, lead time, and final pricing.
Can I request a quote or sample for 74AHCT1G08SE-7?
Yes. Use the Quick Quote or Request Sample action on this page to send the quantity and sourcing requirements for 74AHCT1G08SE-7 by Diodes Incorporated. The TrustCompo team can review price, availability, and documentation support.
Is a datasheet available for 74AHCT1G08SE-7?
Yes. This page links to the datasheet for 74AHCT1G08SE-7 by Diodes Incorporated, so engineers and buyers can review package, ratings, and application details before purchase.
How should buyers verify 74AHCT1G08SE-7 before ordering?
Buyers should confirm the manufacturer, package, quantity, target price, RoHS or compliance needs, and any Certificate of Conformance or traceability requirements for 74AHCT1G08SE-7 before approving the order.
