Supply original 1-532956-6, Rectangular Connectors - Headers, Receptacles, Female Sockets, by TE Connectivity

Supply original 1-532956-6, Rectangular Connectors - Headers, Receptacles, Female Sockets, by TE Connectivity | TrustCompo Electronic

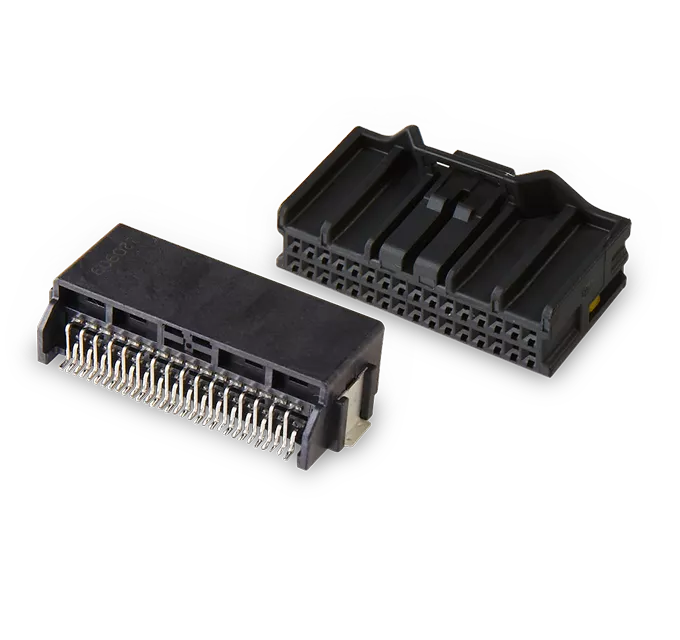

Pictures are for reference only. Please contact us for the latest pictures.

Part Number
1-532956-6
Internal code
TCE000000017
Package
-
Serise
AMPMODU Mod II
key Attributes
-
Description
CONN RCPT 100P 0.1 GOLD PCB R/A
Min Quantity
1
Manufacturer
TE Connectivity
Category
Connectors, Interconnects
Sub Categroy
Rectangular Connectors - Headers, Receptacles, Female Sockets
Datasheet
-

Availability

In Stock887,678
Avaliable558,482

Price Range

QualityUnit Price
1
10
30
100
500
1,000

Due to different local policies, please contact us for the latest quotation.

Certified Quality Assurance
Responsive 24/7 Support
Free Shipping & Sample Provision
30-Day Return Policy

We are ISO 9001, AS 9120B, IOS 14001 certified, ensuring that our quality management system meets international standards. This certification guarantees that every electronic component we supply is authentic, reliable, and traceable. Our dedicated inspection team conducts rigorous quality checks to prevent counterfeit products and reduce failure rates. By adhering to these stringent quality controls, we provide our customers with peace of mind and products they can trust.

Product Attribute

Contact Finish Thickness - Mating
30.0μin 0.76μm
UL Flammability Code
94V-0
Option
GENERAL PURPOSE
Termination
SOLDER
Insulation Resistance
1GOhm
Part Status
Active
DIN Conformance
NO
Mixed Contacts
NO
Radiation Hardening
NO
Pbfree Code
NO
Filter Feature
NO
IEC Conformance
NO
MIL Conformance
NO
Subcategory
Headers and Edge Type Connectors
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Contact Finish - Mating
Gold
Fastening Type
Push-Pull
Manufacturer
TE Connectivity
Flammability Rating
UL94 V-0
Number of Rows
2
Number Of PCB Rows
2
Categories
Connectors, Interconnects
PCB Contact Pattern
RECTANGULAR
Mount
Through Hole
Housing Material
Thermoplastic
Insulation Color
BLACK
Approval Agency
CSA
PCB Mount Alignment
Without
Number of Positions Loaded
All
Reliability
COMMERCIAL
Contact Shape
Square
Published
2008
Plating Thickness
30μin
High Temperature Compatible
Yes
Number of Conductors
ONE
Circuit Application
Signal
ECCN
EAR99
Operating Supply Voltage
250V
Max Voltage Rating (AC)
250V
Voltage - Rated AC
250V
Mating Alignment
With
Dielectric Withstanding Voltage
750VAC V
Pitch - Mating
0.100 2.54mm
Polarization Key
POLARIZED HOUSING
Contact Finish - Post
Tin-Lead
Depth
8.13mm
PCB Mounting Orientation
Right Angle
Orientation
Right Angle
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Contact Length - Post
0.115 2.92mm
Lead Length
2.92mm
Mating Information
MULTIPLE MATING PARTS AVAILABLE
HTS Code
8536.69.40.40
Rated Current (Signal)
3A
Current Rating
3A
Contact Current Rating
3A
Contact Type
Female Socket
PCB Thickness
1.57mm
Contact Material
Phosphor Bronze
Packaging
Tube
Contact Gender
Female
REACH Status
REACH Affected
Height
6.096mm
Contact Finish Thickness - Post
50.0μin 1.27μm
Contact Resistance
12mOhm
Min Operating Temperature
-65°C
Length - Tail
2.921mm
Withdrawl Force-Min
.1946 N
Max Operating Temperature
105°C
Row Spacing - Mating
0.100 (2.54mm)
Contact Plating
Gold, Tin
Lead Free
Contains Lead
PCB Contact Row Spacing
7.874 mm
Mating Contact Pitch
0.1 inch
Series
AMPMODU Mod II
Factory Lead Time
20 Weeks
Style
Board to Board
Mounting Type
Through Hole, Right Angle
Insulation Height
0.238 6.05mm
Feature
Guide Pin Ears
Connector Type
Receptacle
Sub-Categories
Rectangular Connectors - Headers, Receptacles, Female Sockets
ELV
Non-Compliant
Number of Positions
100
Length
133.55mm
Manufacturer's Part No.
1-532956-6

Export Classifications & Environmental

Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN Code
EAR99
HTSUS
8536.69.4040
RoHS Status
RoHS non-compliant
