Supply original 1-5499206-1, Rectangular Connectors - Headers, Male Pins, by TE Connectivity

Supply original 1-5499206-1, Rectangular Connectors - Headers, Male Pins, by TE Connectivity | TrustCompo Electronic

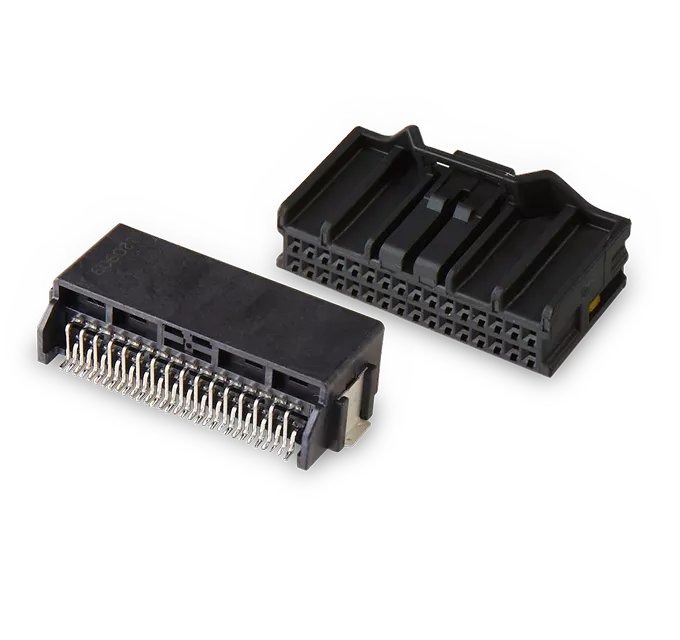

Pictures are for reference only. Please contact us for the latest pictures.

Part Number
1-5499206-1
Internal code
TCE000000016
Package
-
Serise
AMP-Latch
key Attributes
-
Description
CONN HEADER VERT 60POS 2.54MM
Min Quantity
1
Manufacturer
TE Connectivity
Category
Connectors, Interconnects
Sub Categroy
Rectangular Connectors - Headers, Male Pins
Datasheet
-

Availability

In Stock451,034
Avaliable109,640

Price Range

QualityUnit Price
1
10
30
100
500
1,000

Due to different local policies, please contact us for the latest quotation.

Certified Quality Assurance
Responsive 24/7 Support
Free Shipping & Sample Provision
30-Day Return Policy

We are ISO 9001, AS 9120B, IOS 14001 certified, ensuring that our quality management system meets international standards. This certification guarantees that every electronic component we supply is authentic, reliable, and traceable. Our dedicated inspection team conducts rigorous quality checks to prevent counterfeit products and reduce failure rates. By adhering to these stringent quality controls, we provide our customers with peace of mind and products they can trust.

Export Classifications & Environmental

JESD-609 Code
e3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN Code
EAR99
HTSUS
8536.69.4040
REACH SVHC
Unknown
RoHS Status
ROHS3 Compliant

Product Attribute

Contact Finish Thickness - Mating
30.0μin 0.76μm
Contact Finish - Post
Tin
Rated Current (Signal)
1A
Contact Current Rating
1A
Current Rating
1A
Sub-Categories
Rectangular Connectors - Headers, Male Pins
UL Flammability Code
94V-0
Option
GENERAL PURPOSE
Termination
SOLDER
Part Status
Active
DIN Conformance
NO
MIL Conformance
NO
Filter Feature
NO
Radiation Hardening
NO
IEC Conformance
NO
Mixed Contacts
NO
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Manufacturer
TE Connectivity
Packaging
Tray
Material Flammability Rating
UL94 V-0
Flammability Rating
UL94 V-0
Contact Type
Male Pin
Number Of PCB Rows
2
Number of Rows
2
Categories
Connectors, Interconnects
PCB Contact Pattern
RECTANGULAR
Orientation
Vertical
Mount
Through Hole
Mounting Type
Through Hole
Housing Material
Thermoplastic
Insulation Color
BLACK
PCB Mount Retention
Without
Gender
MALE
Number of Positions Loaded
All
ELV
Compliant
Reliability
COMMERCIAL
Contact Shape
Square
Pbfree Code
Yes
Number of Conductors
ONE
Voltage - Rated
250VAC
Circuit Application
Signal
ECCN
EAR99
Operating Supply Voltage
250V
Max Voltage Rating (AC)
250V
Mating Connector Lock
With
Pitch - Mating
0.100 2.54mm
Lead Pitch
2.54mm
Lead Free
Lead Free
Connector Type
Header
Polarization Key
POLARIZED HOUSING
Style
Board to Cable/Wire
HTS Code
8536.69.40.40
PCB Thickness
1.57mm
Row Spacing - Mating
0.100 (2.54mm)
Contact Plating
Gold, Tin
Mating Contact Pitch
0.1 inch
Insulation Height
0.549 13.94mm
Contact Material
Bronze
Contact Length - Post
0.110 2.79mm
Insulation Resistance
5GOhm
Body Breadth
0.336 inch
Shrouded End Dimension
3.81 mm
REACH Status
Vendor Undefined
Series
AMP-Latch
Plating Thickness
760 nm
Overall Contact Length
0.639 16.23mm
Fastening Type
Latch Lock/Eject Hooks, Long
Reference Standard
UL
Dielectric Withstanding Voltage
1000VAC V
Lead Length
2.79mm
Contact Finish Thickness - Post
100.0μin 2.54μm
Contact Finish - Mating
Gold or Gold-Palladium
Operating Temperature
-65°C~105°C
Height
13.94mm
Additional Feature
MILITARY, CENTER AND DUAL POLARIZED
Feature
Keying Slot, Mounting Flange
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.240 6.10mm
Depth
8.53mm
Published
2007
Factory Lead Time
8 Weeks
Number of Positions
60
Length
95.504mm
Manufacturer's Part No.
1-5499206-1
