Supply original 1-5499345-0, Rectangular Connectors - Headers, Male Pins, by TE Connectivity

Supply original 1-5499345-0, Rectangular Connectors - Headers, Male Pins, by TE Connectivity | TrustCompo Electronic

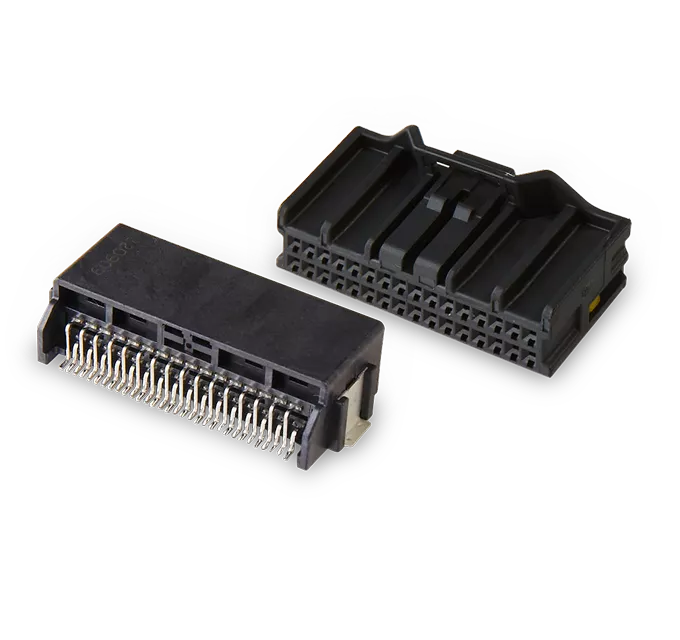

Pictures are for reference only. Please contact us for the latest pictures.

Part Number
1-5499345-0
Internal code
TCE000000012
Package
-
Serise
AMP-Latch
key Attributes
-
Description
CONN HEADER R/A 50POS 2.54MM
Min Quantity
1
Manufacturer
TE Connectivity
Category
Connectors, Interconnects
Sub Categroy
Rectangular Connectors - Headers, Male Pins
Datasheet
-

Availability

In Stock449,585
Avaliable573,323

Price Range

QualityUnit Price
1
10
30
100
500
1,000

Due to different local policies, please contact us for the latest quotation.

Certified Quality Assurance
Responsive 24/7 Support
Free Shipping & Sample Provision
30-Day Return Policy

We are ISO 9001, AS 9120B, IOS 14001 certified, ensuring that our quality management system meets international standards. This certification guarantees that every electronic component we supply is authentic, reliable, and traceable. Our dedicated inspection team conducts rigorous quality checks to prevent counterfeit products and reduce failure rates. By adhering to these stringent quality controls, we provide our customers with peace of mind and products they can trust.

Export Classifications & Environmental

JESD-609 Code
e3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN Code
EAR99
HTSUS
8536.69.4040
REACH SVHC
Unknown
RoHS Status
ROHS3 Compliant

Product Attribute

Contact Finish Thickness - Mating
30.0μin 0.76μm
Contact Finish - Post
Tin
Contact Current Rating
1A
Current Rating
1A
Sub-Categories
Rectangular Connectors - Headers, Male Pins
UL Flammability Code
94V-0
Option
GENERAL PURPOSE
Termination
SOLDER
Part Status
Active
Filter Feature
NO
Mixed Contacts
NO
DIN Conformance
NO
MIL Conformance
NO
Radiation Hardening
NO
IEC Conformance
NO
Manufacturer
TE Connectivity
Packaging
Tray
Flammability Rating
UL94 V-0
Material Flammability Rating
UL94 V-0
Contact Type
Male Pin
Number of Rows
2
Number Of PCB Rows
2
Categories
Connectors, Interconnects
PCB Contact Pattern
RECTANGULAR
Mount
Through Hole
Housing Material
Thermoplastic
Insulation Color
BLACK
PCB Mount Retention
Without
Contact Gender
MALE
Number of Positions Loaded
All
ELV
Compliant
Contact Material
Brass
Reliability
COMMERCIAL
Contact Shape
Square
Pbfree Code
Yes
Number of Conductors
ONE
Voltage - Rated
250VAC
REACH Status
REACH Unaffected
Circuit Application
Signal
ECCN
EAR99
Max Voltage Rating (AC)
250V
Operating Supply Voltage
250V
Mating Connector Lock
With
Pitch - Mating
0.100 2.54mm
Lead Pitch
2.54mm
Lead Free
Lead Free
Connector Type
Header
Polarization Key
POLARIZED HOUSING
Style
Board to Cable/Wire
PCB Mounting Orientation
Right Angle
Orientation
Right Angle
HTS Code
8536.69.40.40
PCB Thickness
1.57mm
Row Spacing - Mating
0.100 (2.54mm)
Contact Plating
Gold, Tin
Mating Contact Pitch
0.1 inch
Mounting Type
Through Hole, Right Angle
Contact Length - Post
0.110 2.79mm
Insulation Resistance
5GOhm
Body Breadth
0.336 inch
Shrouded End Dimension
3.81 mm
Series
AMP-Latch
Plating Thickness
760 nm
Reference Standard
UL
Dielectric Withstanding Voltage
1000VAC V
Lead Length
2.79mm
Contact Finish Thickness - Post
100.0μin 2.54μm
Contact Finish - Mating
Gold or Gold-Palladium
Operating Temperature
-65°C~105°C
Height
13.94mm
Feature
Keying Slot, Mounting Flange
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.240 6.10mm
Factory Lead Time
9 Weeks
Current Rating (Amps)
1A per Contact
Published
2007
Length
82.804mm
Number of Positions
50
Additional Feature
LOW PROFILE, POLARIZED
Fastening Type
Latch Lock/Eject Hooks, Short
Insulation Height
0.315 8.00mm
Lifecycle Status
ACTIVE (Last Updated: 5 months ago)
Depth
23.09mm
Manufacturer's Part No.
1-5499345-0
